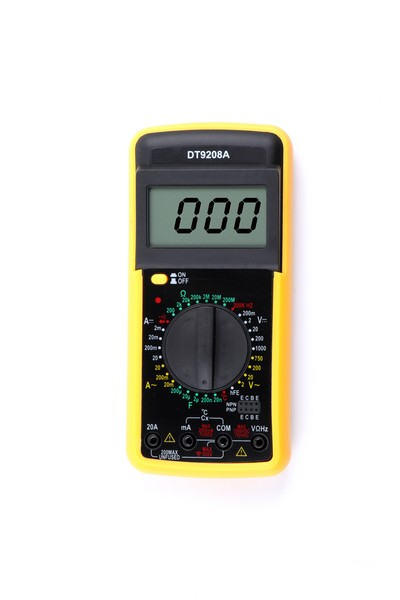

Voltage and current measurement for cars and motorcycles.
Measuring range:
Direct Current (DCA): ~20 A (0-2 mA - 20 mA - 200 mA - 20 A)
AC current (ACA): ~20 A (0 - 20 mA - 200 mA - 20 A)
DC voltage (DCV): ~1000 V (0-200 mV - 2 V - 20 V - 200 V - 1000 V)
AC voltage: ~750 V (0-2 V - 20 V - 200 V - 750 V)
Resistance: ~200MΩ (200Ω - 200MΩ)
Capacitance: ~200μF (20 nF - 200μF)

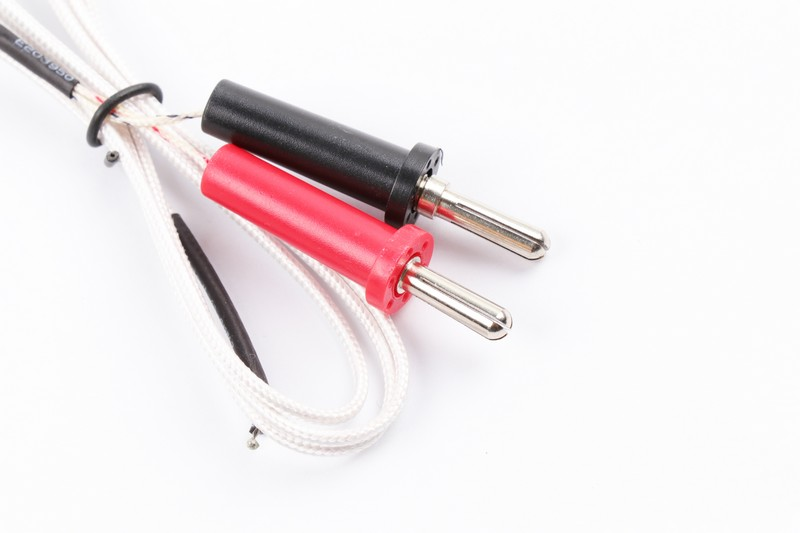

Temperature measurement: -40 ° C - 1000 ° C

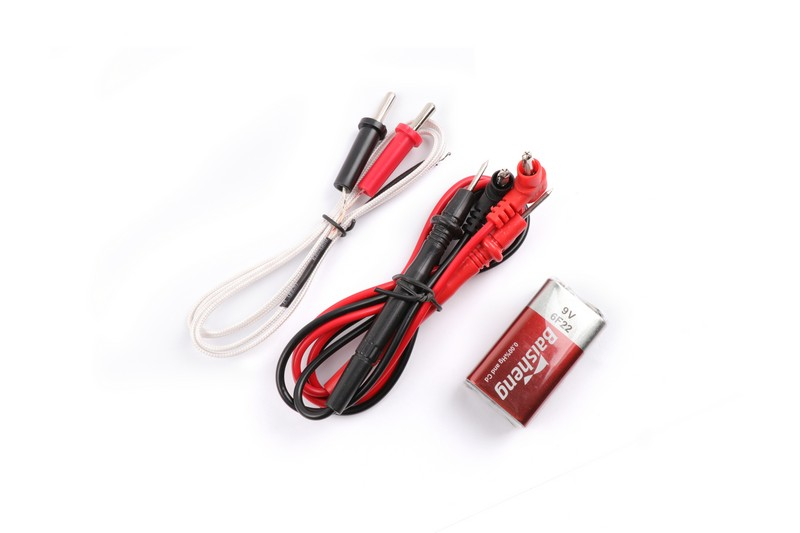

Power: 9V dry battery × 1
Size: 90 × 190 × 35 mm
Color: black / yellow
Packing: Color box
