REFRIGERANT LEAK DETECTOR(AIR SUCKING SYSTEM), W/CE
Refrigerant Leakage Detector is the perfect tool for maintaining
the air-condition or a cooling system with compressor and Refrigerant.
Features:
Microprocessor Control with advanced digital signal processing.

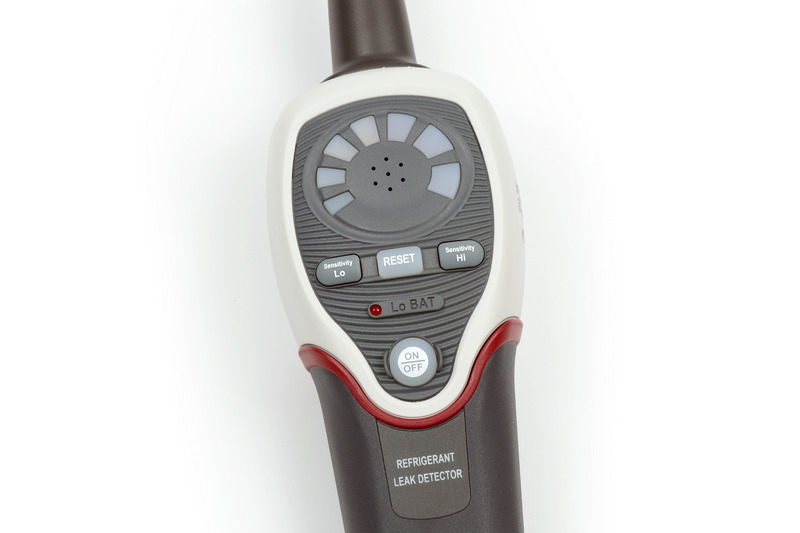

Multi color visual display.
High-median-Low leak sensitivity selector.
Low battery indication.
Semiconductor gas sensor.
Detection of R-134a, R-410A, R-407C, R32, HFO-1234yf…Freon gas.
Carrying case included.

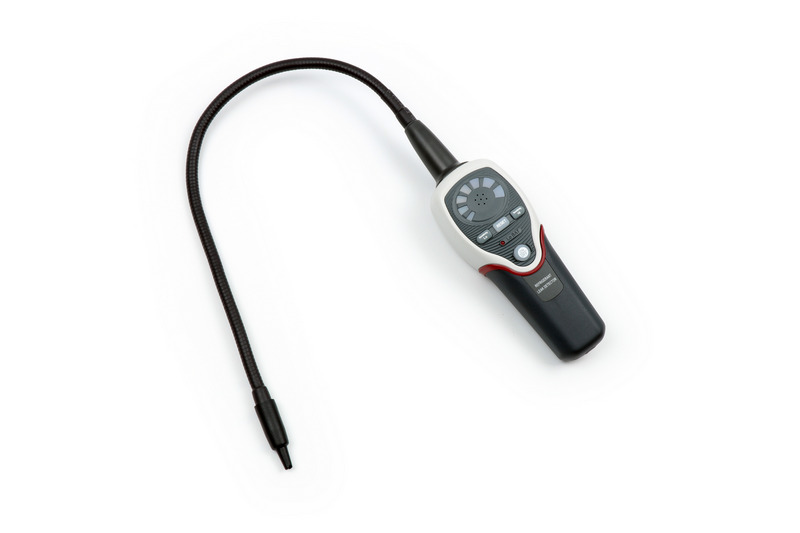

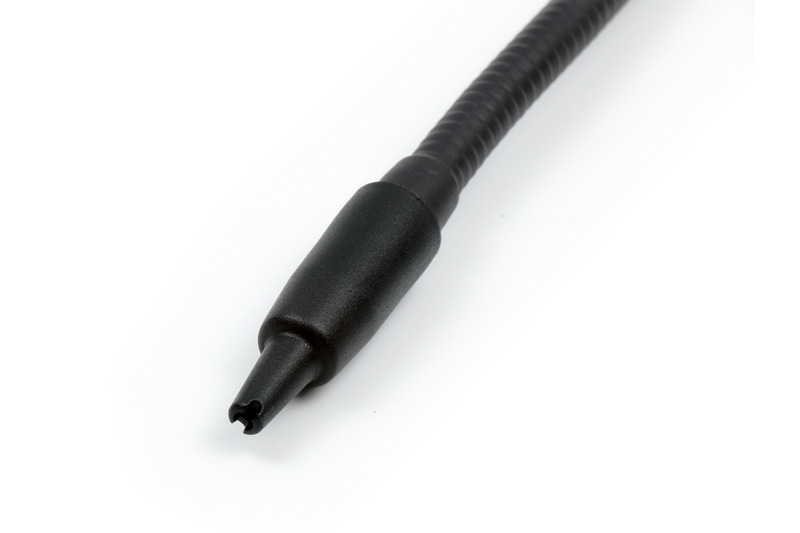

15.5"(40CM) flexible stainless probe.

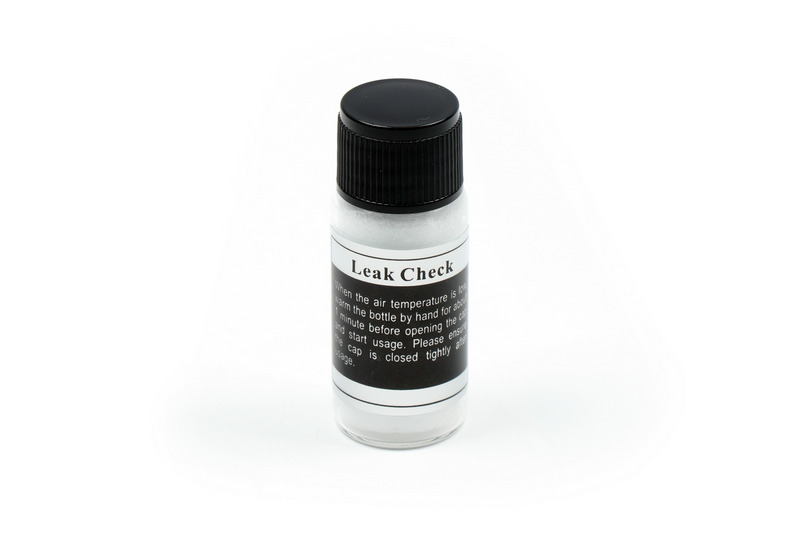

Reference Leak source included.
Ambient concentration reset.
Long-life, DC brushless fan.
Automatic zero and background compensatoin.
Specification:
Detectable Gases: R-134a, R-404A, R-407C, R-410A, R-22,
R-32, HFO-1234yf etc.
Sensitivity:
R-32, R-134a, R-404A, R-407C, R-410A, HFO-1234yf:
3g/year (H); 15g/year (M); 30g/year (L)
R-22:
4g/year (H); 20g/year (M); 40g/year (L)
Alarm Method: Buzzer, Tricolor LED bar Indicator.
Power Usage: 4 AA size(6V DC) Alkaline Batteries.
Snake Tube length: 40cm(15.5")
Dimension/Weight: L213xW65.5xH53.5mm(approximately 400g)

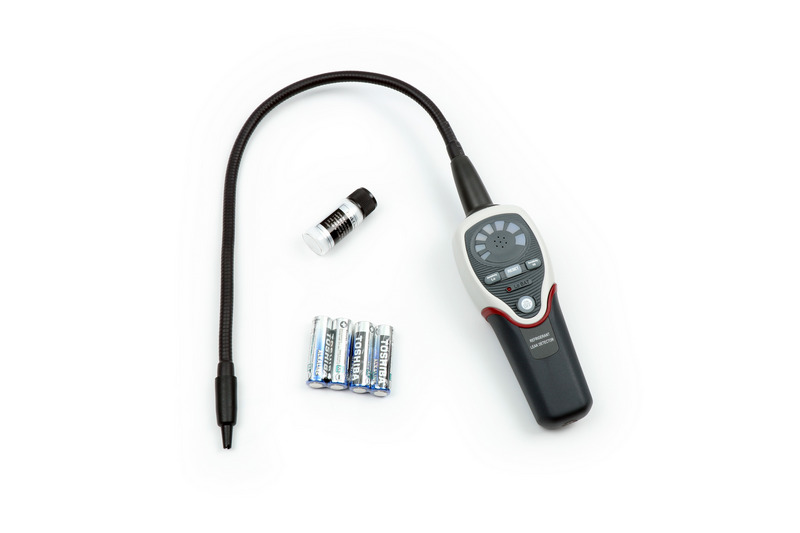

Accessories: Alkaline batteries(AA) x4pcs

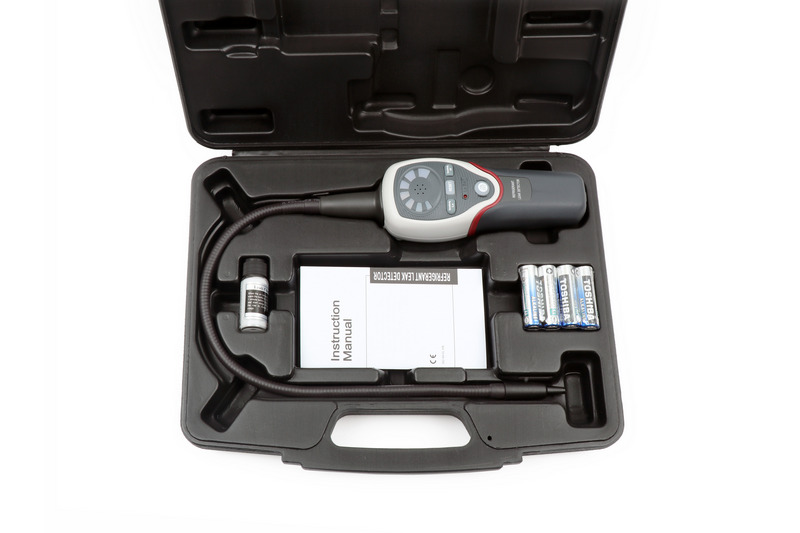

User manual, leak check bottle, carry case.
Battery Life: Approximately 12 hours normal use. (alkaline battery.)
Auto power OFF: 10 minutes
Disable Auto Power Off: Press and Hold "Hi" button then power on the meter.
Warm-Up Time: Approximately 45 seconds
Operating Temperature & Humidity: 0~40°C, <80% RH
Storage Temperature& Humidity: -10~60°C, <70%  RH
Altitude: <2000M (6500')
AC Adapter: @3.3V 0.5A
