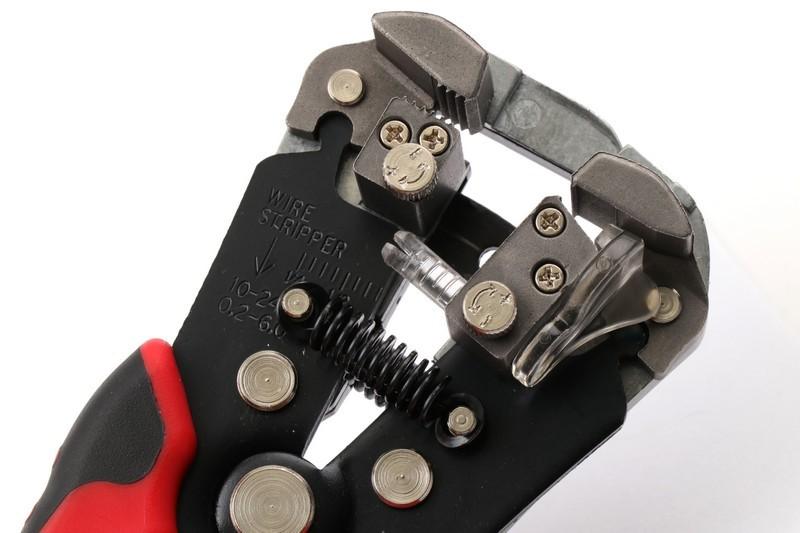

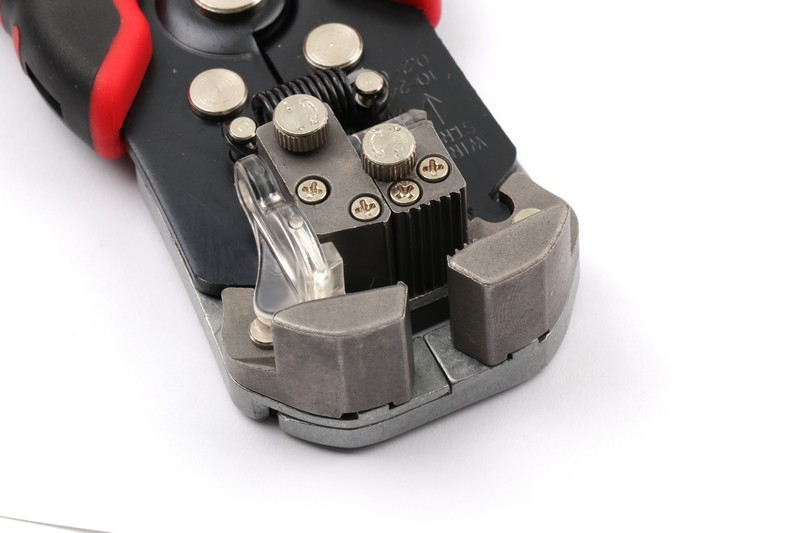

Special designed clamping jaws hold the wire securely during the stripping process
Powder metal jaws, hardness HV450 to 650° (HRC 52 to 57°)
With additional swivel knob, adjust to strip wire maximum 8AWG (8mm²), minimum 30AWG (0.05mm²)
Romax cable 14/2; 12/2 or NM-B cable 10-14AWG.
Body constructed by metal with heat treatment
Adjustable stop controls the length of wire be stripped

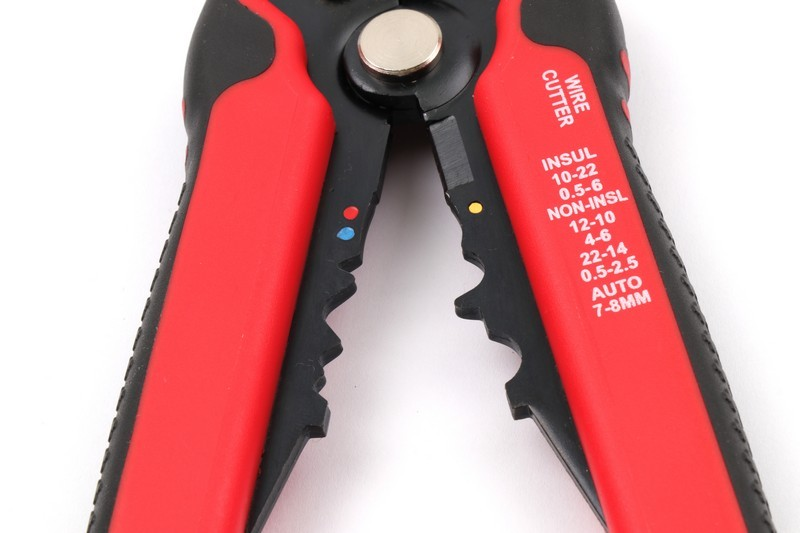

Crimp insulated, non-insulated, and auto ignition terminals
With extra cutting function for regular solid or stranded cable
Total length: 205mm
Standard stripping and cutting gauge 10-26AWG (0.13 to 6mm²)
Swivel knob micro-adjusts for thinner wire to 30AWG (0.05mm²) or thicker wire to 8AWG (8mm²)
Crimp non-insulated terminals 10-22AWG (1.5 to 6.0 mm²)
Crimp insulated terminals 10-22AWG (1.5 to 6.0 mm²)
Crimp auto ignition terminals 7 to 8mm
